Description

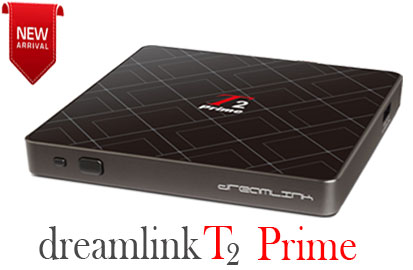

New Dreamlink T2 Prime 2Gb DDR4 Ram 8Gb Flash, built-in WiFi bluetooth IPTV Set Top Box
New Dreamlink T2 Prime IPTV set top box. The new Dreamlink T2 Prime comes operative system Nougat 7.1. Dreamlink T2 Prime is comparable to Formuler Z7 plus. T2 prime is an STB that uses the latests technology in Ram Memory. 2 Gigabytes of Premium Samsung DDR4 SDRAM. If you compare DDR4 memory VS DDR3 you will see big differences. Dreamlink T2 Prime uses the latest technology, DDR4 Premium Samsung Ram Memory and While DDR3 RAM can only hit transfer data rates between 800MT/s (MT/s means Millions of Transfers per Second) and 2133MT/s, DDR4 RAM can transfer data at a rates between 2133MT/s and 4266MT/s. There are two key improvements in the memory Dreamlink T2 Prime uses and they are power consumption and data transfer speed. That means Dreamlink T2 Prime is faster even having less Ram Memory that other boxes boasting bigger size Ram memory due to the fact all others use DDR3. In fact we are proud to admit Dreamlinks are the only IPTV set top boxes using the DDR4 Premium Samsung Ram Memory.

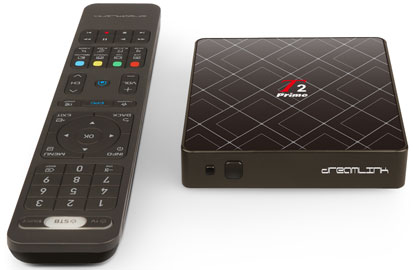

- Dreamlink T2 Prime
- Premium Remote Control with Learning function
- Power adapter
- HDMI Cable
- Quick Setup Guide
- Built-in WiFi antenna
- Remote control extender
- Built-in Bluetooth
Dreamlink T2 Prime has the best decoding features. 4K HDR, HLG, HDR10, HLG, 4K 10-bit 60 frames per second, H.265 and H.264 High Efficiency Video Compression, VP9 10-bit. Plus it plays all the video formats AVI (Audio Video Interleave), FLV (Flash Video Format), WMV (Windows Media Video), MOV (Apple QuickTime Movie), MP4 (Moving Pictures Expert Group 4), and more. Dreamlink T2 Prime will give you rich, realistic color detail-even in the darkest shadows and brightest highlights-when you stream HDR content on a compatible HDR TV. HDR displays a wider range of colors, brighter whites, and deeper blacks to create more natural, beautiful, and true-to-life imagery
A/V Decoding
Video Decoding
- H.265/HEVC Main/Main 10 profile@level 5.1 high-tier,
- Maximum 4K x 2K@60 fps 10-bit VP9 decoding
- H.264/AVC BP/MP/HP@level 5.1, H.264/AVC MVC
- AVS baseline profile@level 6.0, AVS-P16 (AVS+)
- VC-1 SP@ML, MP@HL, AP@levels 0−3
Image Decoding
- Full HD JPEG hardware decoding, maximum 64MP
- PNG hardware decoding, maximum 64MP
Video Formats
- 4:3 Letter Box, 4:3 Pan Scan, 16:9
Video Resolution
- 720 x 576i, 720 x 480i, 1280 x 720p
- 1920 x 1080i, 1920 x 1080p, 4K x 2K
Audio Decoding
- MPEG-1 Layer 1,2
- AAC-LC and HE AAC V1/V2 decoding
Audio Mode
- Stereo/Joint stereo/Mono, Dolby AC-3
Sampling Rate
- 8khz to 192khz sampling rate
Main System
Main Processor
- Hisilicon chipset
Memory
- eMMC : 8 GBytes
- SDRAM : 2 GBytes (DDR4)
Audio / Video & Data IN/OUT
TV OUT
- Video & Audio Output
USB
- USB 3.0 x 1 & USB 2.0 x 1
Ethernet
- RJ45 connector, 10/100M Base
WiFi
- 802.11 b/g/n / with internal antenna
Memory Expansion
- Micro SD Card Slot
IR Extension
- Removable IR extension
S/PDIF
- Optic
Front Panel
Indicators
- 1 Dual Color LED (Standby, Remote)
Power Supply
Input Voltage
- AC 100 ~ 240V, 50/60Hz
Type
- 12V Adaptor
Power Consumption
- Max. 15W
Standby Power
- Max. 0.5W (Ultra low power)
Protection
- Separate Internal Fuse & Lighting protection
Warranty
- One year warranty.
